Automatic Sawing Machine

Features

Eight station indexing rotary table provides for loading, riser gaging, engraving, sawing, ejection/sorting, and fixture cleaning.

In keeping with our continued commitment to meet the needs of our customers and offer accessories that increase efficiency and reduce production costs, we have developed the Automatic Sawing Machine. Although each casting's sawing requirements are different, CMH has the capability to design and build a system to fit your needs.

The Automatic Sawing Machine is designed and constructed to handle the rigors of the foundry environment. The main structure is fabricated of heavy wall structural steel and key components are cast iron to reduce vibration. Access doors are removable and made of lightweight aluminum sound proof panels.

Specifications

• Horsepower 25 HP
• Motor Blade Size 12 in. Dia.
• Blade Speed @ 60Hz 11,000 ft/min.
• Functions: Inspection, Sawing, Sorting

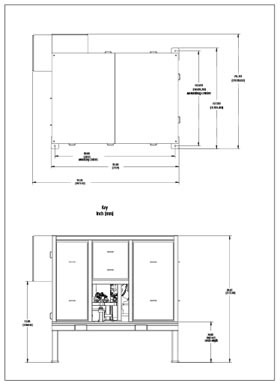

Click to enlarge.

The drawing (above) requires Adobe Acrobat Reader to view.







<
