Lubricant

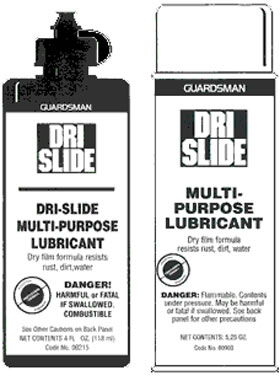

CMH recommends that you lubricate your waybars weekly with a dry lubricant such as Dri-Slide is a formulation of Molybdenum Disulfide and Graphite with rust and corrosion inhibitors.

Features

  • No oily or greasy residue
  • Wide Temperature range
  • Contains corrosion inhibitors
  • Low viscosity carrier
  • Contains no ozone depletes
  • Available in plastic bottles or aerosol can

Technical Data

Appearance

Black Liquid

Carrier

Mineral Spirits

Peak Temp.

1000°F (538° C)

Low Temp.

-20°F (-29°C)

Specific Gravity

0.86

Flash Point

114°F (45.6°C)

Wt. Per Gallon US

7.1 lbs. (3.2 kg)

Packing

Product #

Qty. Per Case

Shipping Wt.

4 fl.oz. (118.3 ml) Bottle

DSL 201

12

4 lbs. (1.8kg)

4 fl.oz. (118.3 ml) Bottle/Needle

DSL 250

12

5 lbs. (2.3kg)

5 1/4 (155.3 ml) oz. Aerosol

DSL 903

12

7 lbs (3.2kg)

32 oz. (0.95 L) Metal Can

DSL 321

12

27 lbs (12.2kg)

1 Gal. US (3.8 L) Metal Can

DSL 325

6

49 lbs. (22.2kg)

CMH Recommends that bearings be lubricated with a lithium detergent grease.
Dri-Slide HDMP grease is a lithium complex grease with molybdenum disulfide
added. NLI grade 2. Temperature range 0° to 300°F (-17.8 to 149°C).
Available in 14 1/2 oz. (428.81 ml) cartridges. Six cartridges per case. Shipping
weight is 7 lbs (3.1 kg) per case. (Name brand might be substituted due to availability)
